Ventilation grilles in aluminium & stainless

Made-to-measure ventilation grilles in polyester-coated aluminium or stainless steel for facades, walls and interiors

Request a quote

Polyester aluminium

Textured aluminium

AISI 316 stainless

Anthracite Grey · RAL 7016

+50

Years of experience

ISO 9001

Certified

Made to measure

In-house manufacturing

Rejillas de ventilación

Key features

Made-to-measure aluminium ventilation grilles

Industrias Mas ventilation grilles are made to measure in polyester-coated aluminium, with the exact dimensions of each opening. They work for exterior facades and walls as well as interior spaces, garages or technical rooms, and are manufactured from small formats up to large grilles over 1000 mm. The fixed louvres ensure permanent ventilation and the mounting system hides the screws for a clean finish, with no visible fixings. Alongside polyester-coated aluminium, we also make them in AISI 316 stainless steel.

01

Made to Measure

Each grille is manufactured to the exact dimensions of the opening. Custom length and height, with standard colours available or any RAL colour with a surcharge.

02

No Visible Fixings

Mounting system that hides the anchor screws for a clean, design-forward finish, integrated into any facade.

03

Aluminium or Stainless Steel

1.2 mm aluminium with 25 microns of polyester coating on both sides, or 1.5 mm aluminium with a textured powder coating. Resistant to corrosion, UV rays and thermal variations. You can also choose an AISI 316 stainless steel finish.

04

Fixed Louvres

Fixed, angled louvres that ensure permanent, effective ventilation, with no moving parts requiring maintenance.

05

ISO 9001 Certification

Manufactured under the strict quality controls of our ISO 9001:2015 certification, guaranteeing maximum reliability in every piece.

On site

1 / 2

Request a quote

25-micron polyester coating · 1.2 mm

Anthracite Grey · RAL 7016

Enter the measurements of the opening to be covered. The frame overlaps the wall ~40 mm on each side, outside the opening.

Attach drawings or documentation (optional)

Technical drawings

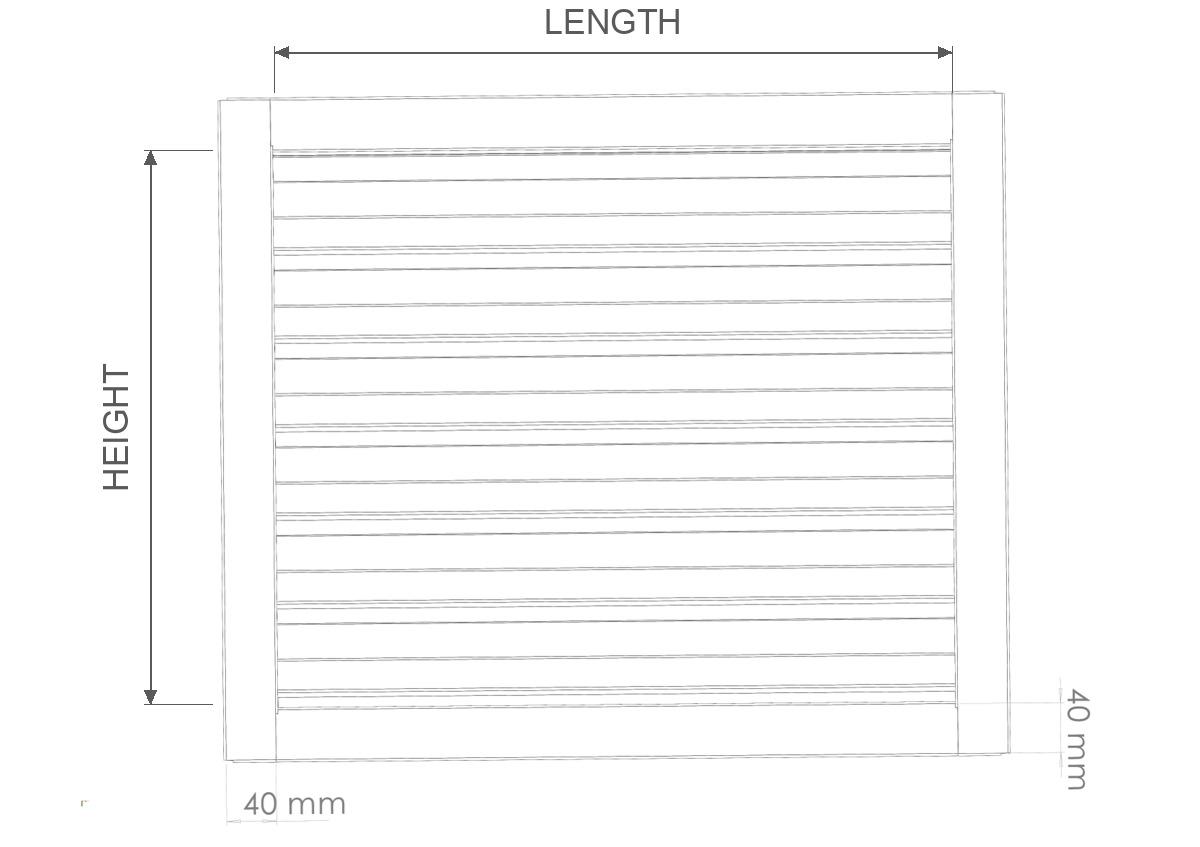

2D front viewPDF
2D side viewPDF

Available finishes

Polyester-coated aluminium · 1.2 mm

Black

RAL 9005

Anthracite Grey

RAL 7016

Dark Grey

RAL 7022

White

RAL 9003

Natural

RAL 9006

Textured powder-coated aluminium · 1.5 mm

More scratch-resistant

Textured Black

RAL 9005

Textured Anthracite Grey

RAL 7016

Textured Dark Grey

RAL 7022

Textured White

RAL 9016

AISI 316 stainless steel

Stainless Steel

AISI 316

We also manufacture to order in any RAL chart colour, with a surcharge.

Technical specifications

Material
Polyester-coated aluminium Textured powder-coated aluminium AISI 316 stainless steel
Thickness
1.2 mm polyester-coated aluminium 1.5 mm textured powder-coated aluminium 0.8 mm AISI 316 stainless steel
Depth
60 mm
Coating
25 microns polyester coating on both sides · Textured powder coating
Manufacturing
Made to measure (length and height)
Louvres
Fixed
Recess depth (classic grille)
50 mm
Frame width
40 mm on all models
Standard colours
Polyester-coated: RAL 9005, RAL 7016, RAL 7022, RAL 9003, RAL 9006 · Textured powder-coated: RAL 9005, RAL 7016, RAL 7022, RAL 9016
Optional finishes
Available with surcharge, per RAL chart
Certification
ISO 9001:2015

Applications and accessories

Ventilation grilles for façades and service spaces

We make fixed-louvre grilles to the size of the opening, for façades and indoor spaces. The catalogue covers large openings, lift shafts, light wells, garages and screens for air-conditioning units.

Façade openings

Choose the finish alongside the dimensions: polyester-coated aluminium, textured powder-coated aluminium or AISI 316 stainless steel. Side fixing keeps the mounting screws out of the front view.

Service openings

For large grilles or several openings, send a list of sizes and quantities. If the project specifies an airflow or free area, include it so we can review the grille selection.

Accessories on request

Fixing strip
An optional strip for fixing between bricks.
Bird mesh
The catalogue offers 15 × 15 mm mesh or a 3 × 10 mm pattern.
Dust filter
Available as an optional accessory. Tell us what protection the installation needs when you enquire.

Accessories are reviewed as part of a quotation: list them with the dimensions and finish.

Measuring and fitting

How to measure the opening for a made-to-measure grille

Front view of the ventilation grille showing horizontal and vertical dimensions
Horizontal × vertical · actual opening dimensions
  1. Measure the opening without deducting clearance

    Give the actual horizontal and vertical dimensions of the wall opening in millimetres. The catalogue asks for opening dimensions without clearance deductions; these are different from the frame's outer dimensions.

  2. List sizes and quantities separately

    State how many grilles you need in each size. Use one line per size or send a dimensioned sketch for different openings.

  3. Specify the finish and accessories

    Give the material, RAL reference where applicable, and whether you need a fixing strip, bird mesh or dust filter.

  4. Check the side fixing

    The catalogue shows screw fixing from the sides, with no fixings visible from the front. If the wall junction needs a different solution, send an opening detail before manufacture.

Enquire about sizes and accessories
